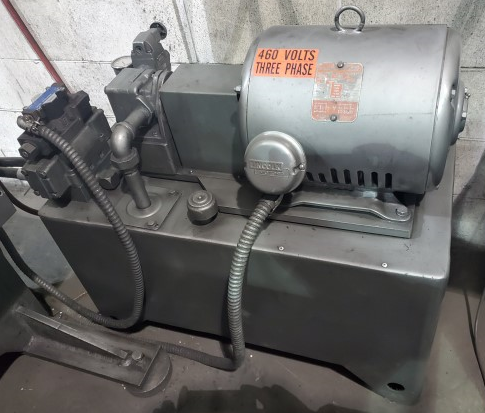

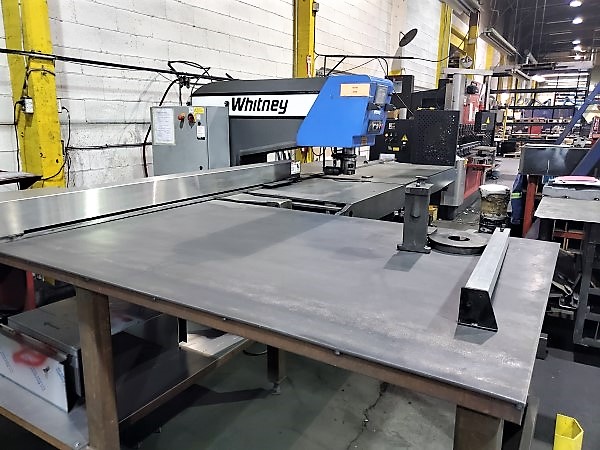

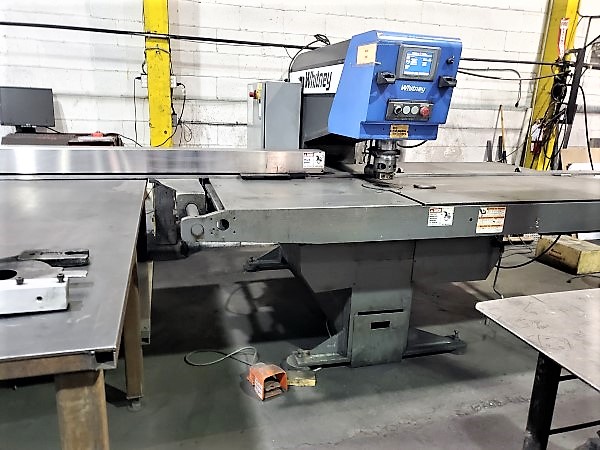

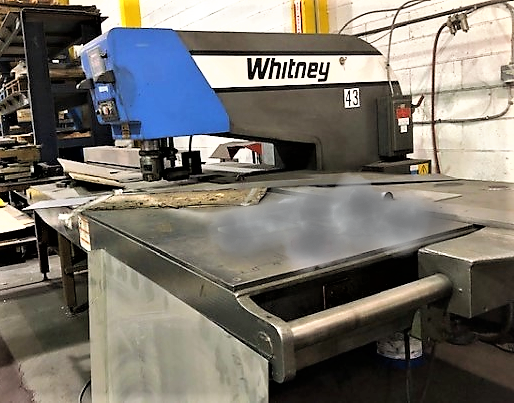

DUPLICATOR PUNCH – Whitney Mod. 630, 440v/3ph, s/n C2040089

DUPLICATOR PUNCH – Whitney Mod. 630, 440v/3ph, s/n C2040089

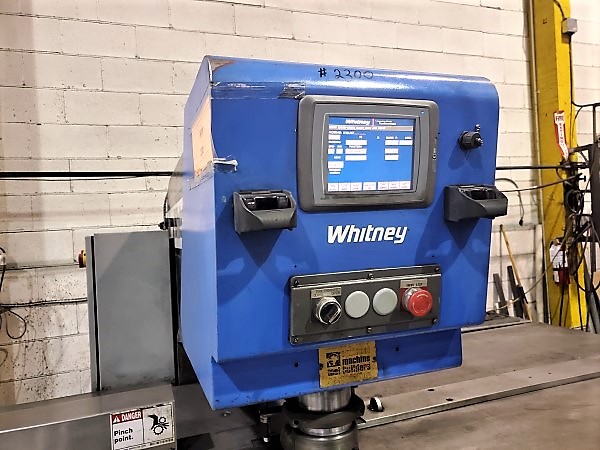

•  E1071 plc control
• 630 capacity thru mild steel
• Depth of Throat with gaging: 30″
• Stroke: 1 3/4″ max. adj. up and down to 3/8″ min.
• Strokes per minute at 1/2″ stroke: 80
• Maximum material with duplicator and gaging: 1/4″
• Maximum material using 630-002 stripper assy.:
• Estimated weight:: 8000 – 10,000 lbs
• Hole in main press ram: 1 9/16 dia. x 2 1/4″ deep
