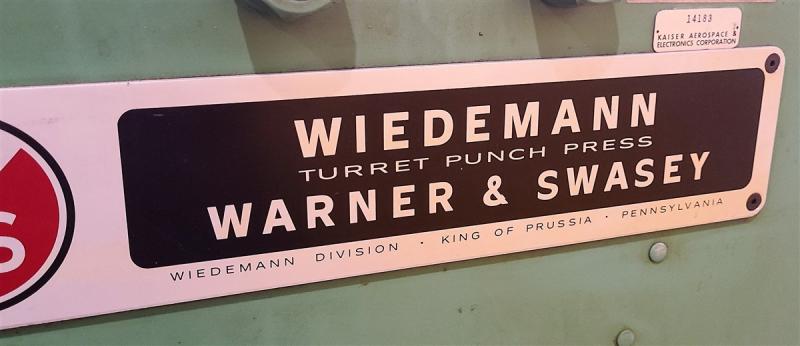

Wiedemann rotary turret punch

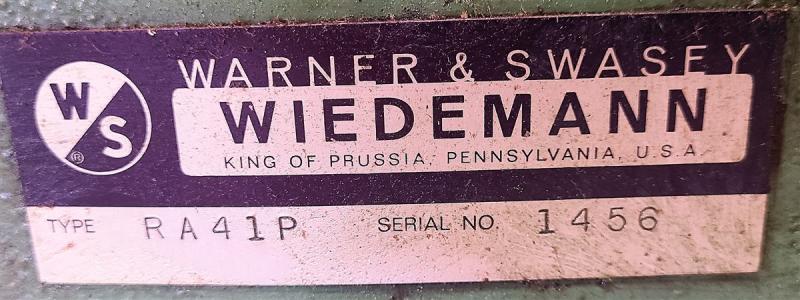

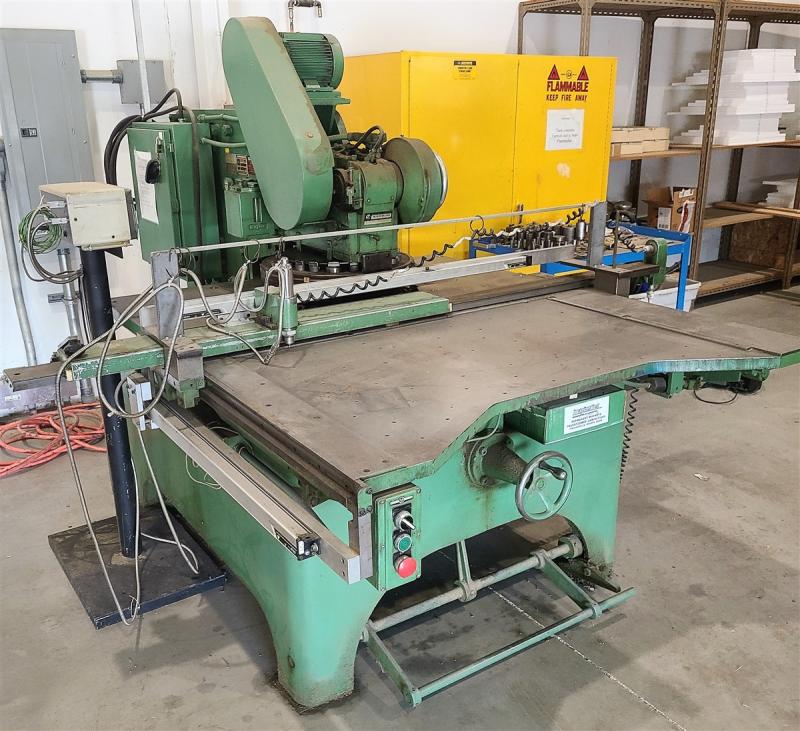

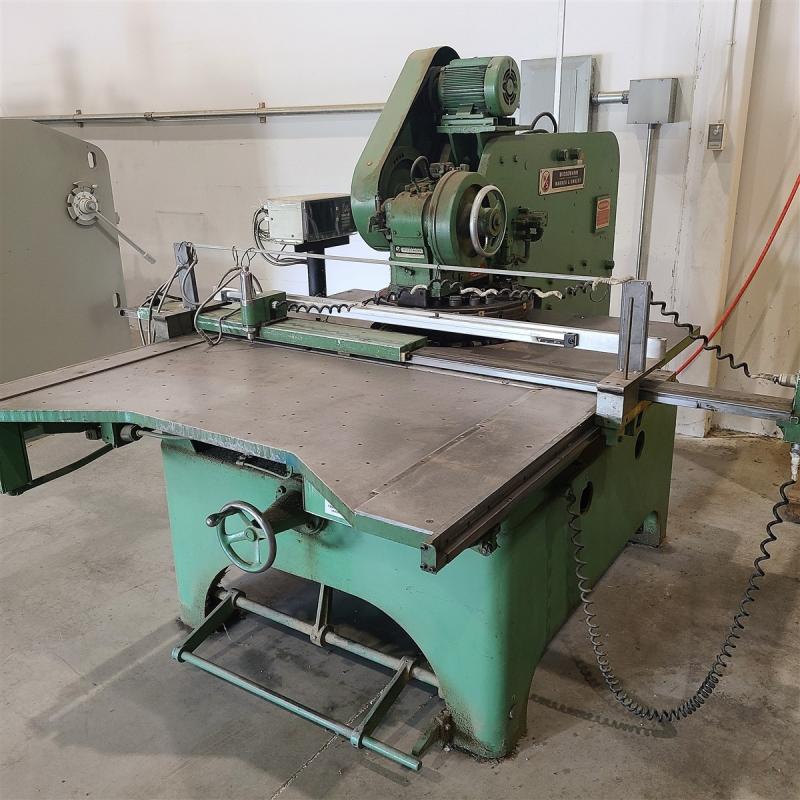

Wiedemann mechanical turret punch press-hole punch machine # R41P

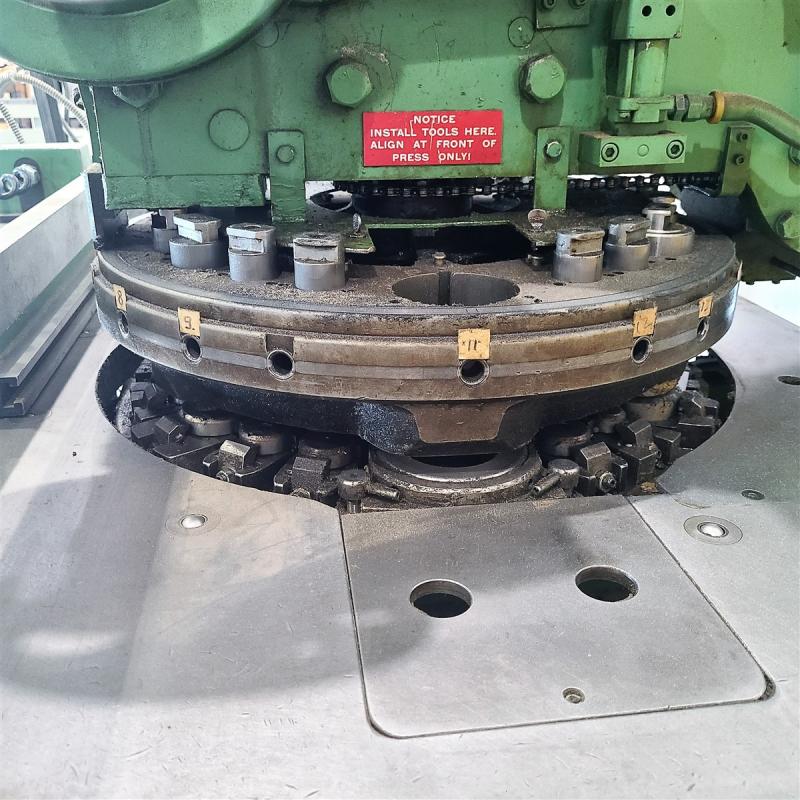

15 ton force; 28" throat depth; 20 stations; 3-1/8" max punch dia; stroke counter;

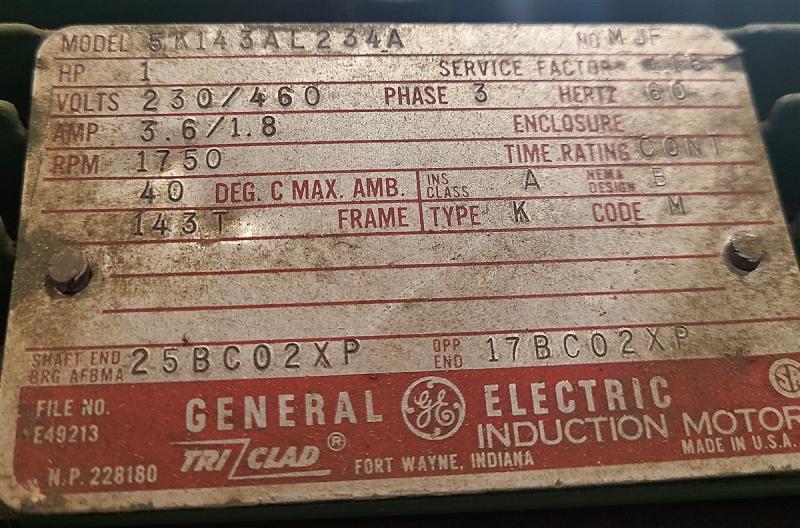

Punch capacity: 14ga mtl steel or 3/4" hole in 1/4" steel,27/32" dia in 1/4",1-3/16" in 3/16",2" dia in 1/8",3-1/8" in 0.089 mtl; electric stop/back gage built into table; ram stroke: 1-1/16"; clearance between dies & strippers: 7/16"; strokes per min: 100; 1HP main motor;  single stroke clutch system
